Arc Vision
Multi-Modal Facial Authentication Device
Features
Specifications
Components
BioConnect’s Arc Vision sets a new standard in access control, providing a new door access experience that enables improved security across all doors, for organizations of all sizes. This terminal is smaller than previous model, yet it has the largest variety of features.
Unrivalled Facial Authentication Performance
Robust Device Security and Data Encryption
Best-in-class Multimodal Device
The Highest Level of Privacy Protection
Arc Vision takes data protection very seriously.
ISO/IEC 27001, 27701
ISO/IEC 27001 and 27701 certified to protect biometric data and user privacy.
GDPR Compliant
Designed to comply with GDPR, one of the strictest privacy regulations.
Penetration Tested
Completed penetration testing through a verified institution.
Security
Embedded with Secure Element (SE) and Secure Boot to protect against cyberattacks.
Features
Fast and Smart AI Optimized for Facial Authentication Access
The Arc Vision’s NPU-optimized AI algorithm offers the highest standards in facial authentication accuracy and speed.
Nonstop Pass Through with 0.2 Second Matching Speed
Accurately and rapidly recognize moving faces in high-traffic areas within 0.2 seconds
Compatible with All Ethnicities and Facial Variations
Use dynamic face templates to increase matching performance for people of any ethnicity and faces wearing masks, glasses, hats, beards, niqabs, various hairstyles, etc.
Protected Against Facial Spoofing
Detect fake faces, images, and photos to safeguard against facial spoofing
Specifications
| Category | Feature | BC-ARCV-A |
| Credential | Biometric | Face |
| RF Option |
125KHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3, FEliCa, iClass SE/SR/Seos |
|
| RF read range* | EM/HID Prox/MIFARE/DESFire/HID iCLASS: 30 mm, FeliCa: 15mm | |
| Mobile | NFC, BLE | |
| General | CPU | 1.5GHz Quad Core |
| Memory | 32GB Flash + 4GB RAM | |
| LCD type | 5.5” IPS color LCD | |
| LCD resolution | 720 x 1280 pixels | |
| Sound | 16bit | |
| Operating System | -20°C ~ 50°C (-4°F ~ 122°F) | |
| Operating humidity | 0% ~ 80%, non-condensing | |
| Dimension (WxHxD) | 82.5mm x 171mm x 23.4mm (4.7″” x 8.8″” x 0.9″”) |
|
| Weight – Device | 380g | |
| Weight – Bracket | 90g | |
| IP rating | IP65 | |
| Certificates | CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE, MIC, TELEC | |
| Face | Recognition Distance | 0.5m ~ 1.3m (19.7″ ~ 51.2″) |
| Recognition Height | 140cm ~ 190cm (55.1″ ~ 74.8″) | |
| Matching speed | Less than 0.5 sec | |
| Anti-spoofing | Supported | |
| Capacity | Max. User (1:1) | 100,000 |
| Max. User (1:N) | 100,000 | |
| Max. Image Log | 50,000 | |
| Max. Text Log | 5,000,000 | |
| Interface | Ethernet | 10/100 Mbps, auto MDI/MDIX |
| RS-485 | 1ch Host or Slave (Selectable) | |
| Wiegand | 1ch Input or Output (Selectable) | |
| TTL Input | 2ch Inputs | |
| Relay | 1 Relay | |
| USB | USB 2.0 (Host) | |
| Tamper | Supported | |
| Power | Voltage: DC 12V ~ DC 24V Current: Max. 2.5 A *Use a 24V/2.5A adapter. Must follow the product manual when using a 12V adapter. |
Components
Add the Arc Vision to your access control system with:
Arc Vision
Get the Arc Vision from your access control provider for proven assurance at all access points.

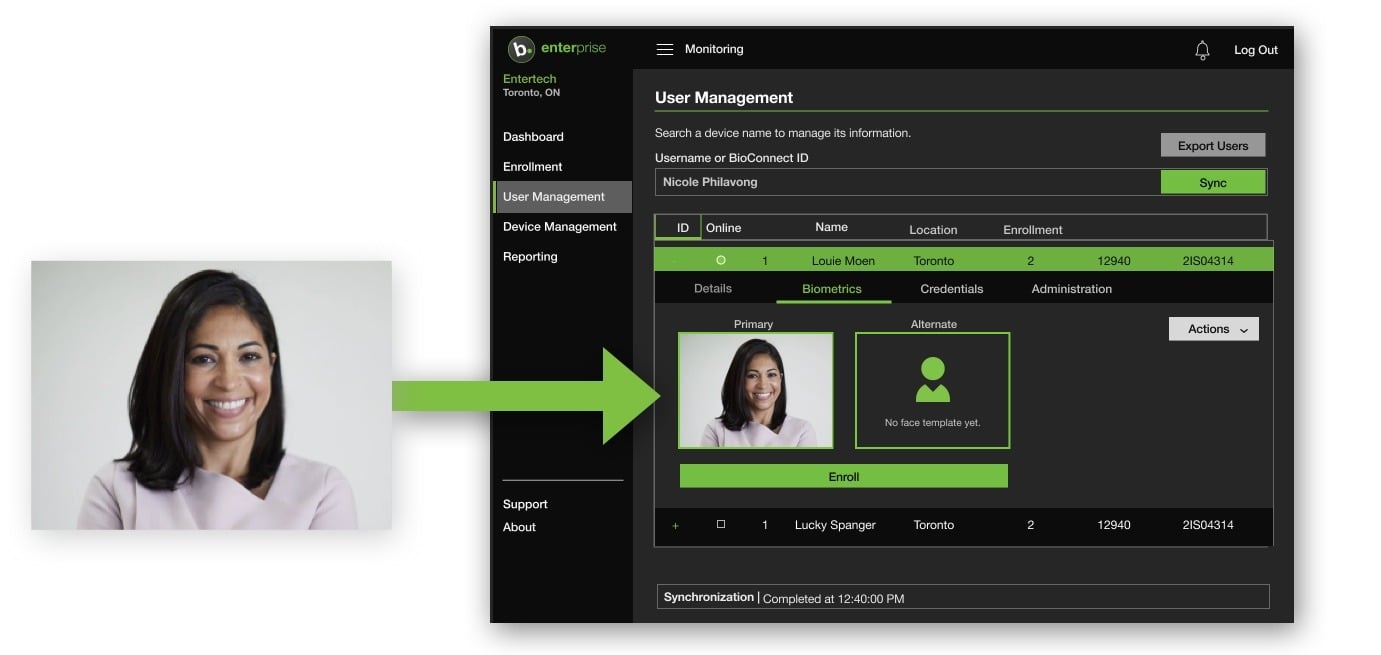

Enterprise Software
Our biometric integration software, BioConnect Enterprise, makes it easy and cost effective to add biometrics to your current system.
Existing PAC System
We integrate with the top 15 access control systems in the market so you can continue to use your existing and trusted software.
